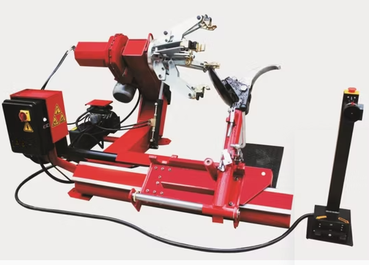

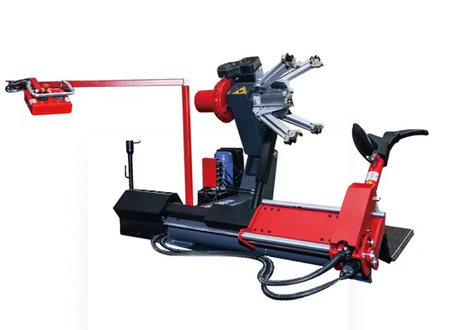

Fully automatic Truck Tire Changer (HY-TC5698) designed for large wheels (14"-42" rims). Features double helper arms and hydraulic controls for efficient B2B tire service operations.
Fully automatic operation streamlines the changing process for large truck and industrial tires.
Handles an extensive range of rim diameters from 14 inches up to 42 inches.

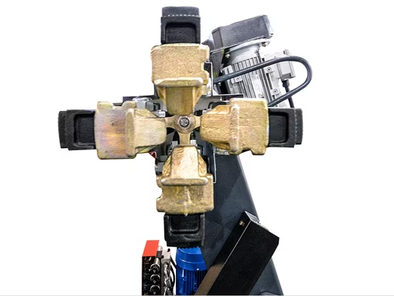

Powerful hydraulic system controls the tool bracket, lifting arm, and wheel gripper functions.
Double helper arms provide essential assistance for managing stiff sidewalls during mounting/demounting.
Features a convenient remote hand-held switch (24V) for safe and effective operation.
Robust construction designed for durability in high-volume commercial B2B workshops.
Suitable for industrial, agricultural, and heavy engineering vehicle wheels.
Model Reference: HY-TC5698
Rim Diameter Capacity: 14" - 42"
Maximum Wheel Diameter: 2300 mm
Maximum Wheel Width: 1050 mm
Maximum Wheel Weight: 1600 kg
Power Supply Options: 380V / 220V (3PH/1PH options available)
